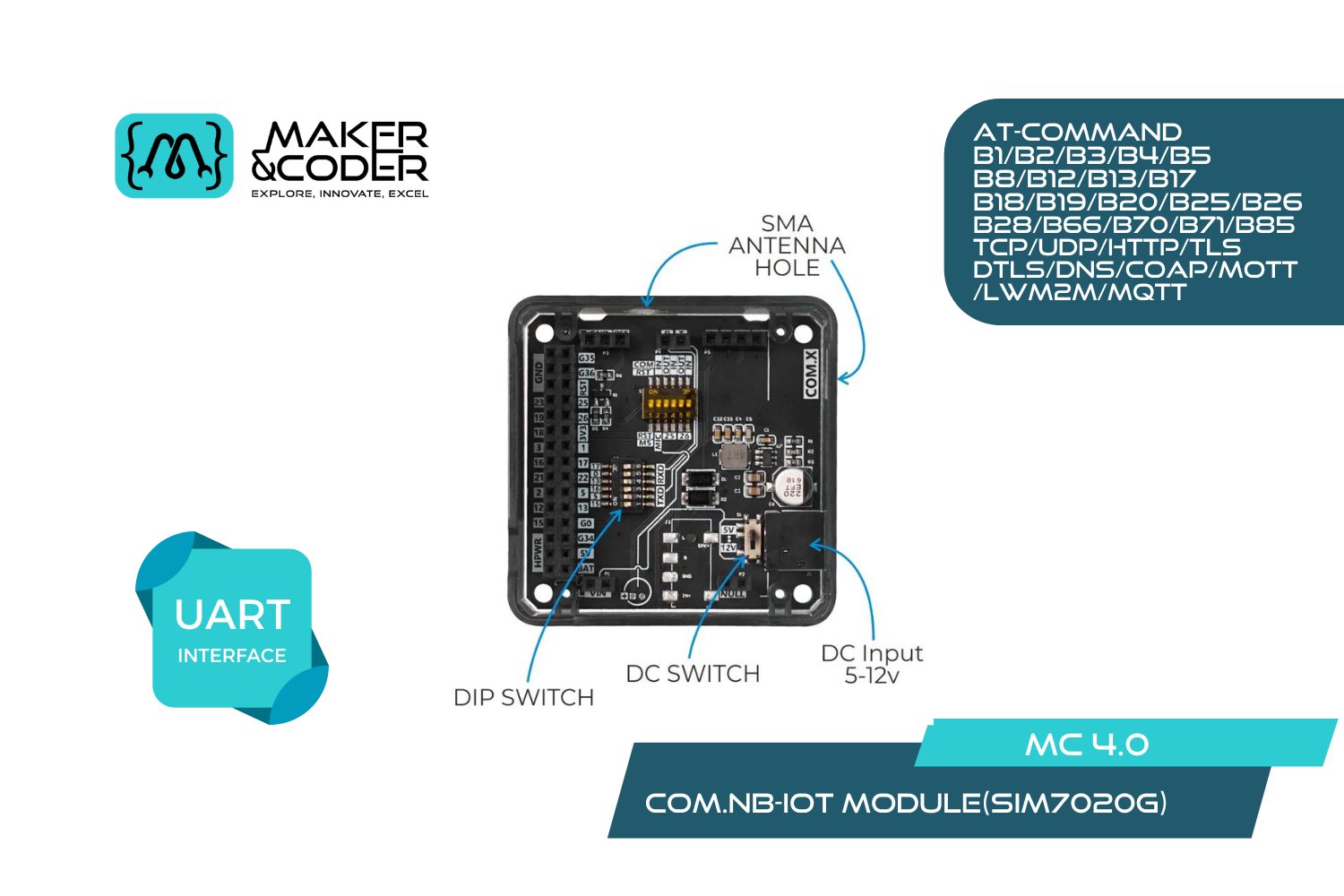

COM.NB-IoT Module(SIM7020G)
Product Description Stackable multi-band NB-IoT wireless communication module with built-in SIM7020G communication module. The module supports PSM and eDRX low power consumption modes. It is very suitable for IoT applications such as metering, remote control, asset tracking, remote monitoring, telemedicine, and ride sharing. Product Features Stackable design Support low power consumption mode Strong signal access […]
Maker & Coder Subscriber? Login to get your discount
Product Description
Stackable multi-band NB-IoT wireless communication module with built-in SIM7020G communication module. The module supports PSM and eDRX low power consumption modes. It is very suitable for IoT applications such as metering, remote control, asset tracking, remote monitoring, telemedicine, and ride sharing.
Product Features
- Stackable design
- Support low power consumption mode
- Strong signal access capability
- Independent external power supply
- AT command control
- SIM card type: MicroSIM
- Status signal: two LED indicators
- External antenna: SMA antenna
- Serial communication: UART 115200 bps
Applications
- Smart meter
- Smart parking
- Municipal management
- Telemedicine
- Ride Sharing
Specifications
- Frequency band B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28/B66/B70/B71/B85
- Network protocol TCP/UDP/HTTP/HTTPS/TLS/DTLS/DNS/NTP/PING/LWM2M/COAP/MQTT/MQTTS
- Communication UART 115200bps
- DC interface specifications 5.5mm
- Net weight 40g
- Gross weight 75g
- Product Size 54.2*54.2*13.2mm
