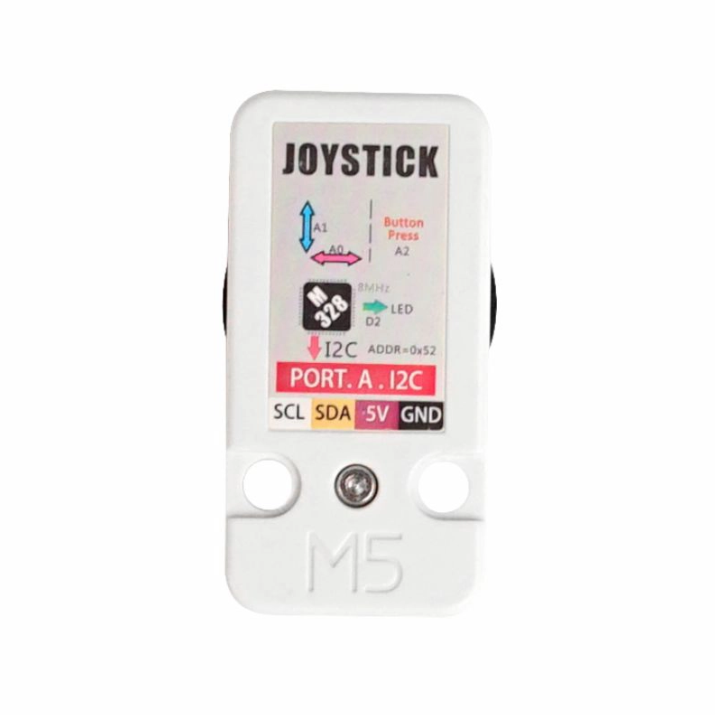

Joystick Sensor Module
Description The Joystick Sensor Module works as a handy tool when building interactive electronics. It comes with dual-axis control that tracks movement on both the X and Y axes. This gives accurate directional input making it useful in robotics, gaming setups, or navigation devices. A built-in button adds another way to control giving more flexibility […]
Maker & Coder Subscriber? Login to get your discount
Description
The Joystick Sensor Module works as a handy tool when building interactive electronics. It comes with dual-axis control that tracks movement on both the X and Y axes. This gives accurate directional input making it useful in robotics, gaming setups, or navigation devices. A built-in button adds another way to control giving more flexibility in how you design your systems.
The joystick produces analog voltage signals based on how the stick moves, which allows for smooth and responsive handling. Its push-button switch sends a simple high or low digital signal. This makes it easy to set up both steady and one-time inputs in different kinds of projects.
Small and easy to handle, the Joystick Module fits into many devices without using much room. Its sturdy build offers durable performance even when used in tough conditions.
This Joystick Sensor works well with popular microcontrollers such as Arduino, ESP32, and MCLab. It connects through a 5-pin interface. Running on 3.3V to 5V, it suits most regular electronics projects.
If you’re creating a robotic system, a game controller, or an interactive navigation tool, the Joystick Sensor Module gives reliable and precise control to manage your project. It combines dual-axis analog input with a digital push-button making it a great pick for hobbyists, teachers, and electronics fans who want simple control in their projects.
Features
- Three-axis input:
- X/Y axis analog input
- Z axis button digital input
- 2 x LEGO-compatible holes
- Development platforms: Arduino, MCLab(Blockly, Python)
Includes
- 1 x Unit Joystick
- 1 x HY2.0-4P Grove cable (20cm)
Applications
- Game controller
- Robot remote control
Specifications
| Specification | Parameter |
|---|---|
| Communication protocol | I2C:0x52 |
| X, Y axis output value | 0-255 |
| Z axis button output | 0/1 |
| Net weight | 11g |
| Gross weight | 27g |
| Product dimensions | 48 x 24 x 32mm |
| Package dimensions | 75 x 45 x 30mm |
Frequently Asked Questions
This module offers dual-axis analog inputs and includes a push-button switch to support interactive projects.
It uses potentiometers to measure changes in X and Y positions and turns these into analog voltage signals.
The push-button switch gives extra digital input to allow more interaction when building your projects.
This module works with voltages from 3.3V to 5V. It fits well with most microcontroller setups.
You can use it with microcontrollers like Arduino ESP32, and MCLab.
You can use it in things like robotic controls, game controllers, or navigation systems.
It provides an analog signal for the joystick’s movement and a digital signal for the push-button.
