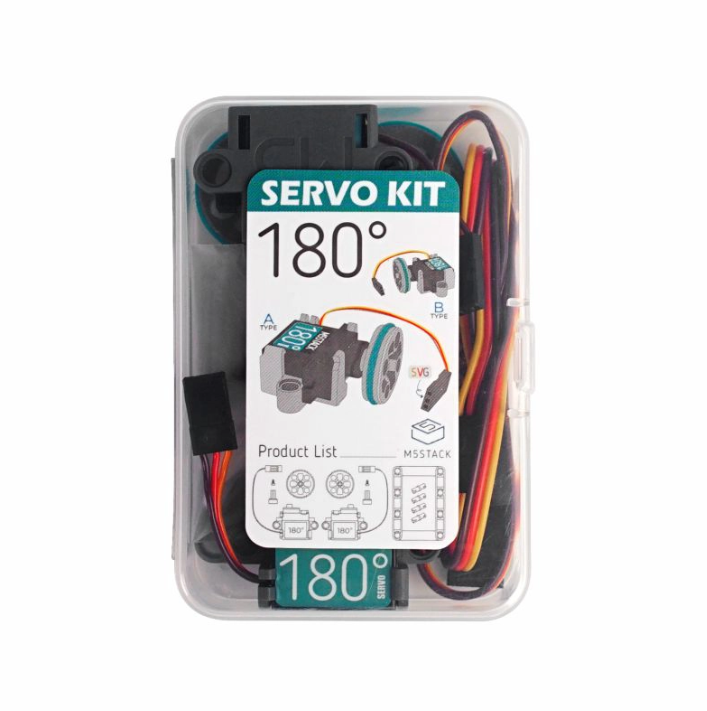

Servo Kit 180° – Servo Motor Kit
Description The Servo Kit 180° works as a vital tool to help robotics makers and developers gain accurate control of mechanical movements. This all-in-one kit comes with a durable 9g servo motor that rotates up to 180°. It also includes extras like servo horns, brackets, and screws, which make it simpler to add to your […]
Maker & Coder Subscriber? Login to get your discount
Description
The Servo Kit 180° works as a vital tool to help robotics makers and developers gain accurate control of mechanical movements. This all-in-one kit comes with a durable 9g servo motor that rotates up to 180°. It also includes extras like servo horns, brackets, and screws, which make it simpler to add to your projects.
This 180° servo motor kit fits with platforms such as Arduino, Raspberry Pi, and ESP32. Its compatibility makes it a good fit with different fields like automation, robotics, and mechatronics. You can use it to build things like robotic arms moving camera setups, or mechanical parts that need steady and precise movements.
Key features include:
- 180° Rotation: Allows accurate angular motion suited to many uses.
- High Torque: Delivers enough strength to manage medium-level loads.
- Compact Design: Fits well within tight spaces or smaller setups.
- Easy Integration: Works with standard PWM signal controls.
Upgrade your robotics builds using the Servo Kit 180°. It brings controlled and smooth motion to your designs.
Features
- Miniature servo system
- Compatible with Maker & Coder
- Simple to control
- Supports Arduino, MCLab
Includes
- 2 x SG90 Servo 180°
- 2 x Servo wheels, 24mm
- 2 x M2*4mm Hexagon socket countersunk head self-tapping screws
- 1 x Square frame beam building block
- 1 x Servo fixing clip A
- 1 x Servo fixing clip B
- 2 x Servo extension cables, 30cm
- 2 x Servo disc accessory kits (including several servo discs and screws)
- 2 x Servo axles
- 2 x Grove to Servo adapters
- 4 x Black Connector
Specifications
| Specification | Parameter |
|---|---|
| Gear material | Metal motor teeth, plastic gearbox |
| PWM frequency | 50Hz/0.5~2.5MS |
| Servo weight | 9g |
| Torque | 1.6kg•cm/4.8V; 1.8kg•cm/6.0V |
| Speed of 180° servo | 0.1sec/60°/4.8V; 0.09sec/60°/6.0V |
| Stalling current | 750mA |
| No-load current | 60mA |
| Gear material | Metal motor teeth, plastic gearbox |
| Wire length | 3cm |
| Dead zone | 8μm |
| Spline | 20T |
| Voltage | 4.8 ~ 6.0V |
| Product Size | 40 x 12 x 36mm |
| Product Weight | 48.6g |
| Package Size | 163 x 118 x 22mm |
| Package Weight | 51.6g |
Frequently Asked Questions
This kit comes with a 9g servo motor, brackets, servo horns, screws, and connecting cables. It provides all the basics you need to add it to your projects.
The servo motor rotates up to 180° to allow precise control over its angle.
The motor works with Arduino, Raspberry Pi, and ESP32 since it accepts standard PWM control signals.
The motor has enough torque to handle moderate loads. It fits a number of different tasks.
The motor is made for indoor use. To use it outside, choose a weather-resistant or waterproof model.
You can control a servo motor with PWM signals. Microcontrollers such as Arduino or Raspberry Pi produce these signals.
This kit works great to build robots, set up automation, use as mechanical actuators, or any task that needs accurate angle movement.
