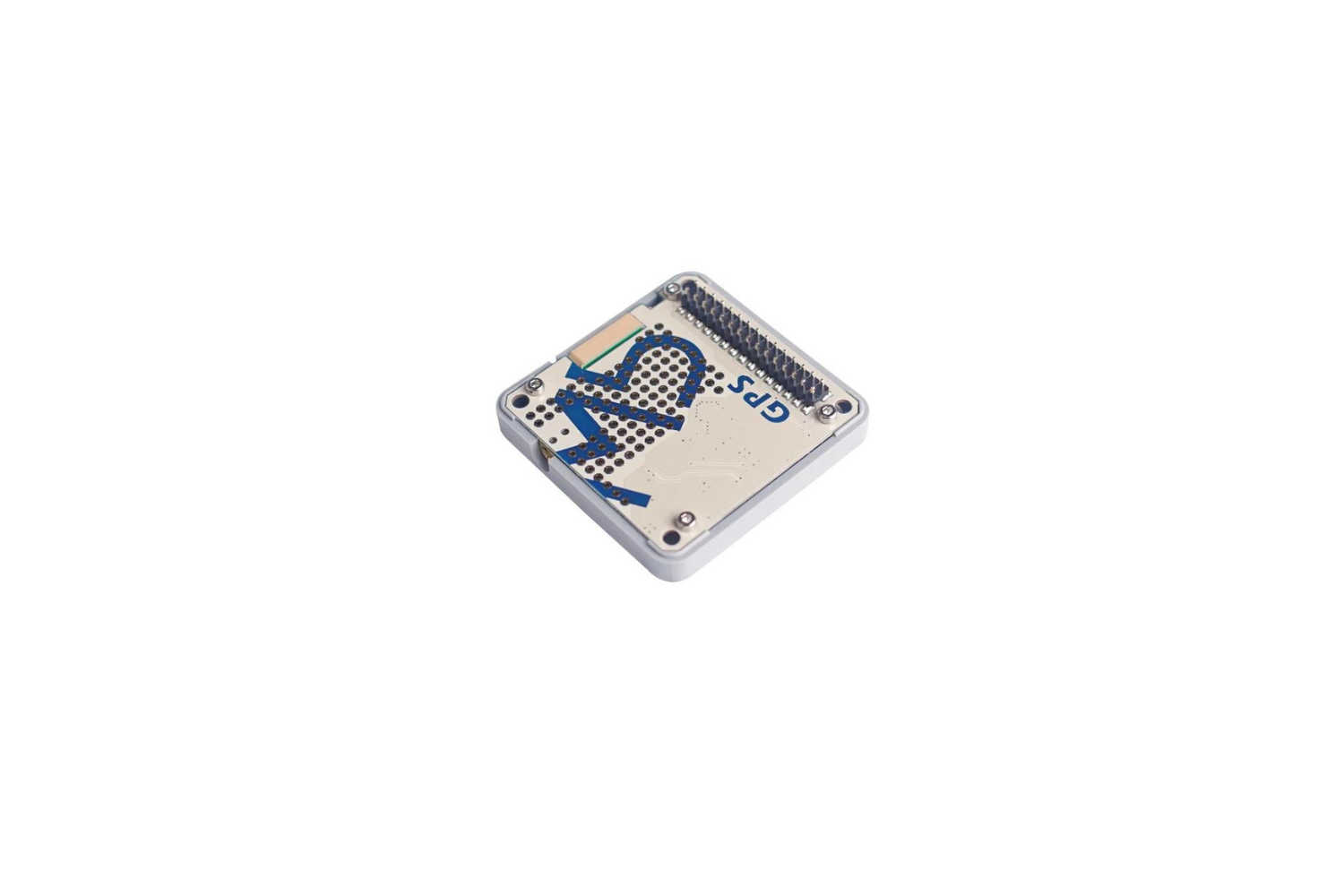

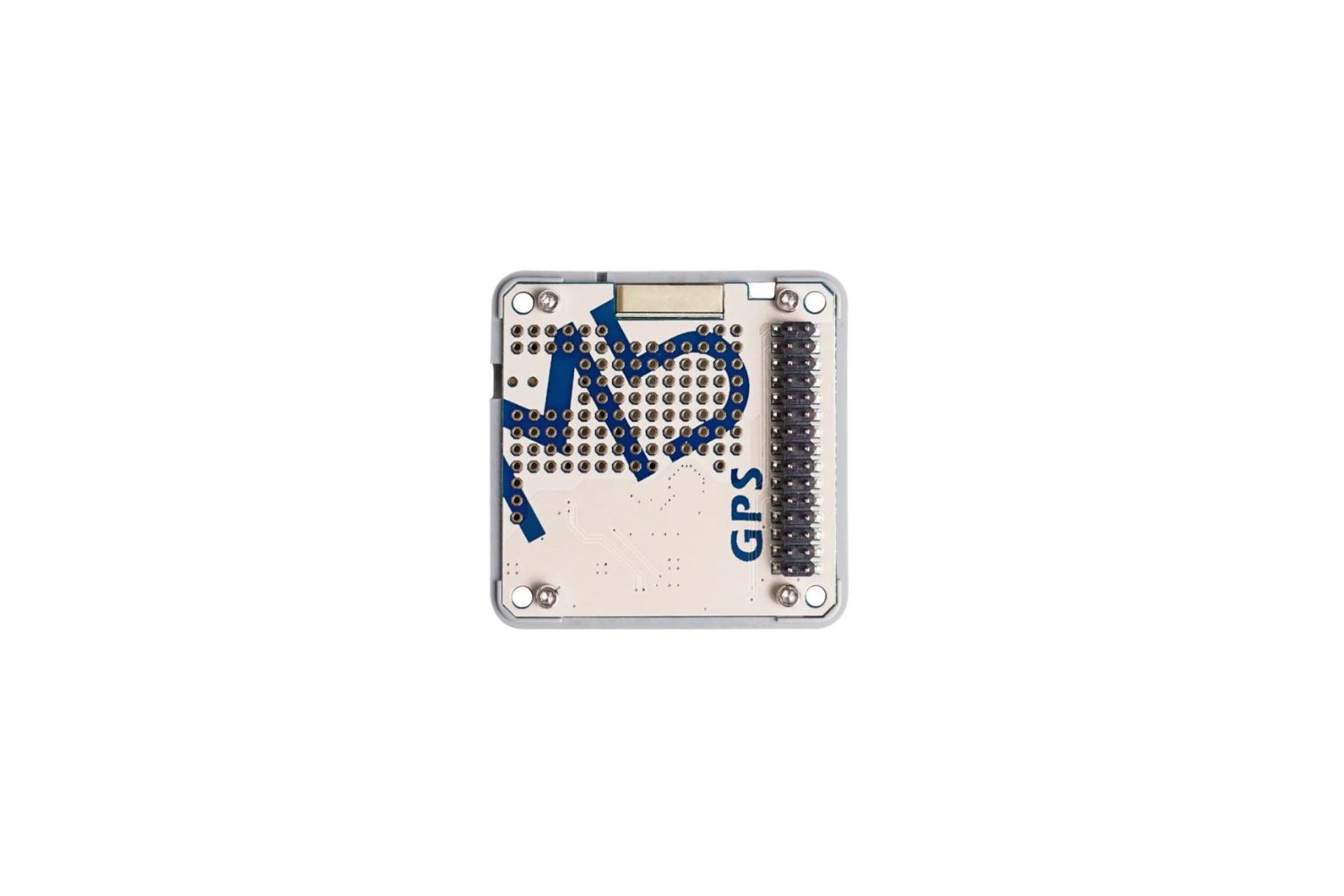

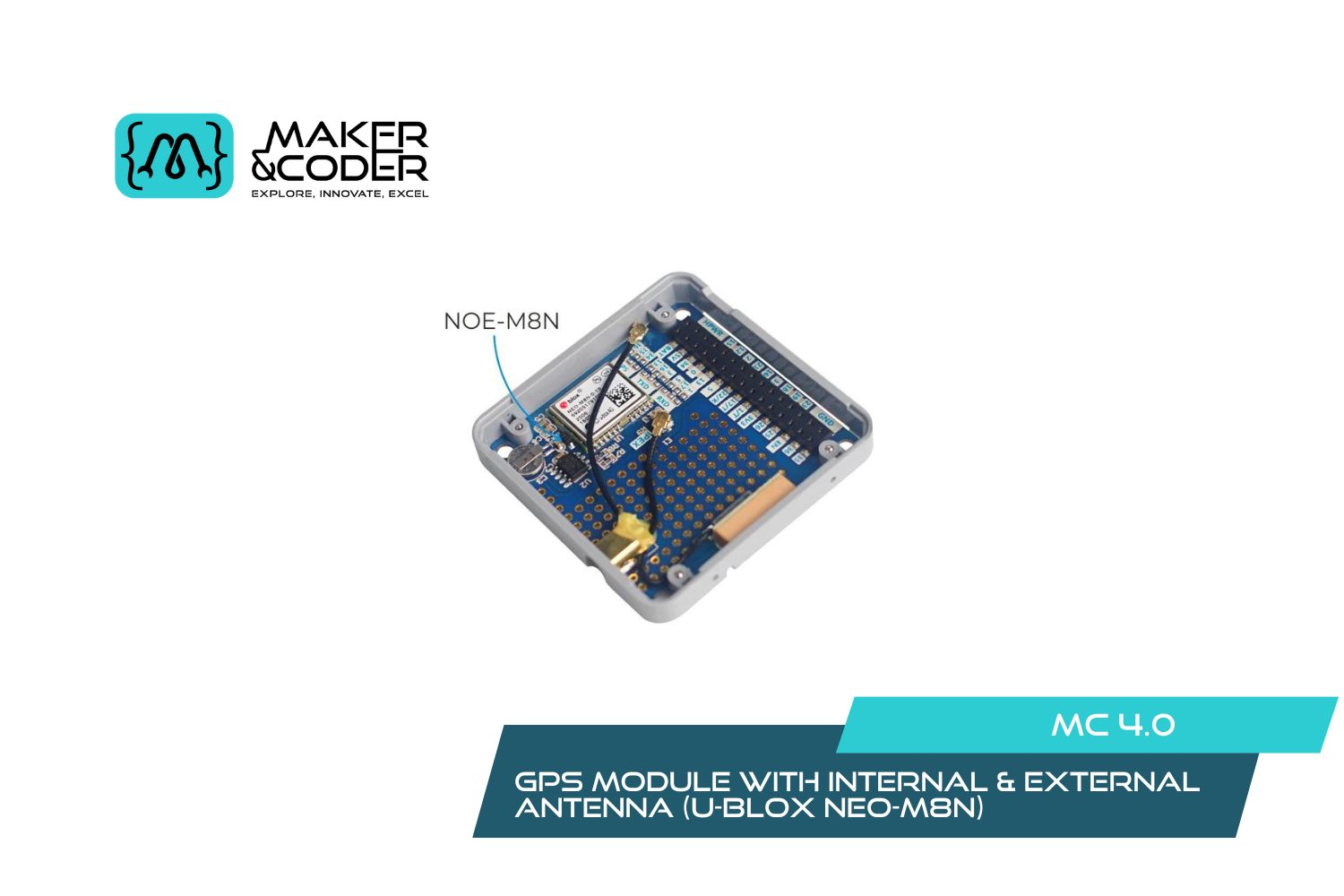

GPS Module with Antenna (U Blox Neo M8N)
Product Description Boost how you can position things using the GPS Module equipped with an Antenna powered by the u-Blox NEO-M8N. This small and tough ublox GPS module combines a smart design with internal and external antenna options. The gps module with antenna provides solid signal strength even in tricky areas. It has built-in FLASH […]
Maker & Coder Subscriber? Login to get your discount
Product Description
Boost how you can position things using the GPS Module equipped with an Antenna powered by the u-Blox NEO-M8N. This small and tough ublox GPS module combines a smart design with internal and external antenna options. The gps module with antenna provides solid signal strength even in tricky areas. It has built-in FLASH memory and works with u-center firmware updates making the ublox neo m8n both dependable and adaptable to use in your projects.
Built to deliver high-sensitivity performance near -167 dBm, this ublox GPS module picks up signals from several GNSS systems like GPS, GLONASS, Galileo, BeiDou, and SBAS at the same time. It provides accurate positioning with very little drift. On average, its horizontal accuracy measures about 2.5 meters. A cold start takes 26 seconds, while a hot start completes in just 1.5 seconds. The module supports NMEA, UBX, and RTCM protocols making it easy to connect with microcontrollers, mapping tools, and telemetry systems.
This GPS module with an antenna works great to navigate drones, track vehicles, control robots, or power IoT gadgets. It fits well for small personal projects and large industrial setups. An external SMA connector helps place the antenna where signals are the strongest, and if that’s not reachable, the built-in antenna keeps things running . The u-blox NEO-M8N module provides updates at a maximum speed of 10 Hz for single GNSS systems and operates between temperatures of -40 °C and 80 °C. Compact and energy-efficient, this module offers precise data on location, speed, and direction making it a top choice in its category.
Product Features
- Antenna type: external GPS antenna
- External antenna port: SMA
- Can receive data from 3 GNSS systems at the same time
- Horizontal position accuracy: minimum 2.5m
- GPS module (NEO-M8N) built-in flash memory, through u-center-just-for-Windows upgrade firmware
- Protocol: NMEA, UBX, RTCM
- Industry leading -167dBm sensitivity
- Backward compatible with NEO‑7 and NEO‑6 series
Applications
- GPS-based logistics tracking
- Driverless car positioning
Specifications
- Receiver type GPS:L1C/A SBAS:L1C/A QZSS:L1C/A GLONASS:L1OF BediDou:B1 Galileo:E1B/C
- Positioning time Cold start:26S Hot start:1.5S
- Sensitivity -167 dBm
- Update rate Separate GNSS 10Hz，Parallel GNSS 5Hz
- Rate accuracy 0.05m/s
- Speed limit 500m/s
- Working temperature -40 ~ 80°C
- DC interface specifications 5.5mm
- Net Weight 28g
- Gross Weight 99g
- Product Size 54*54*13.2mm
Frequently Asked Questions.

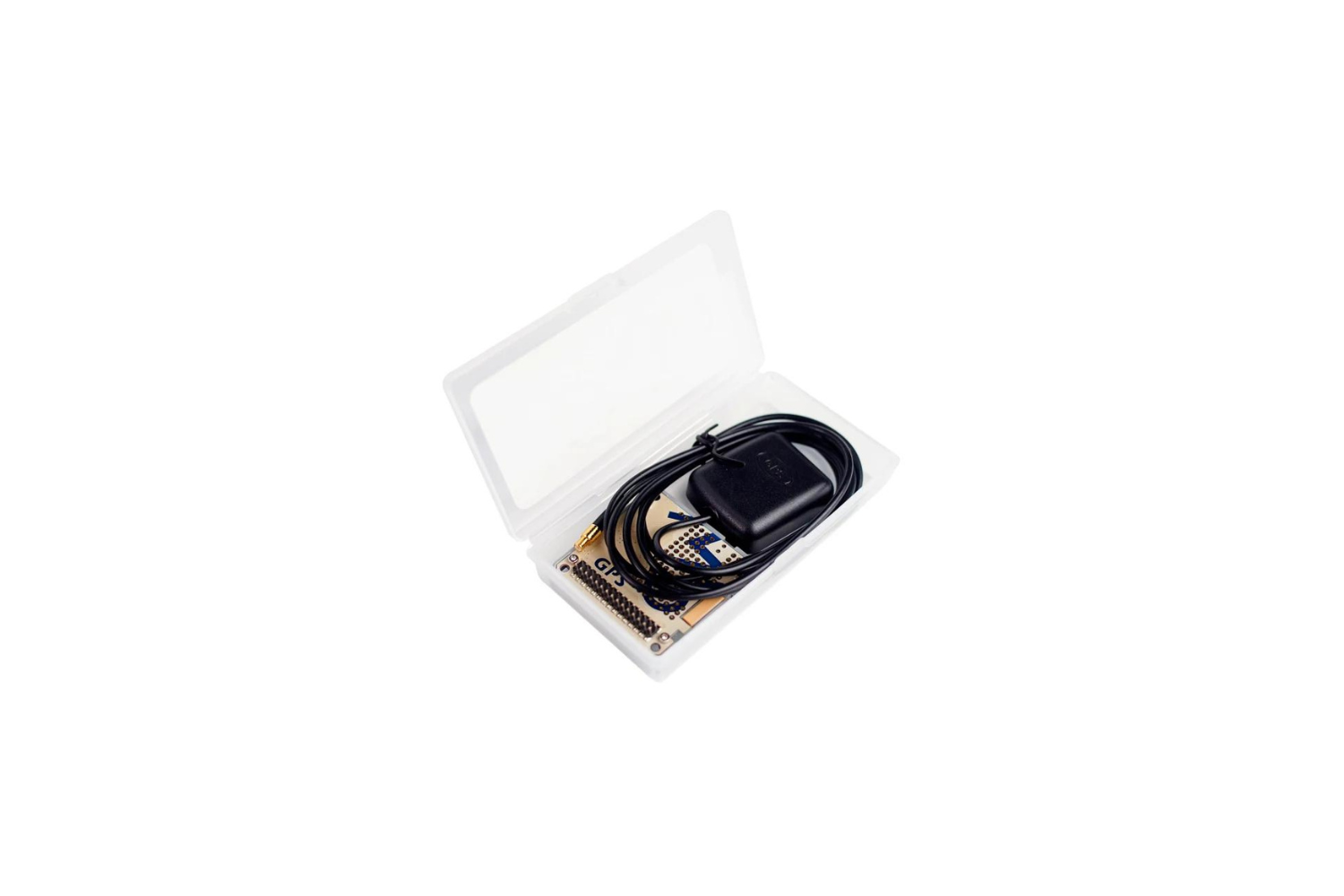

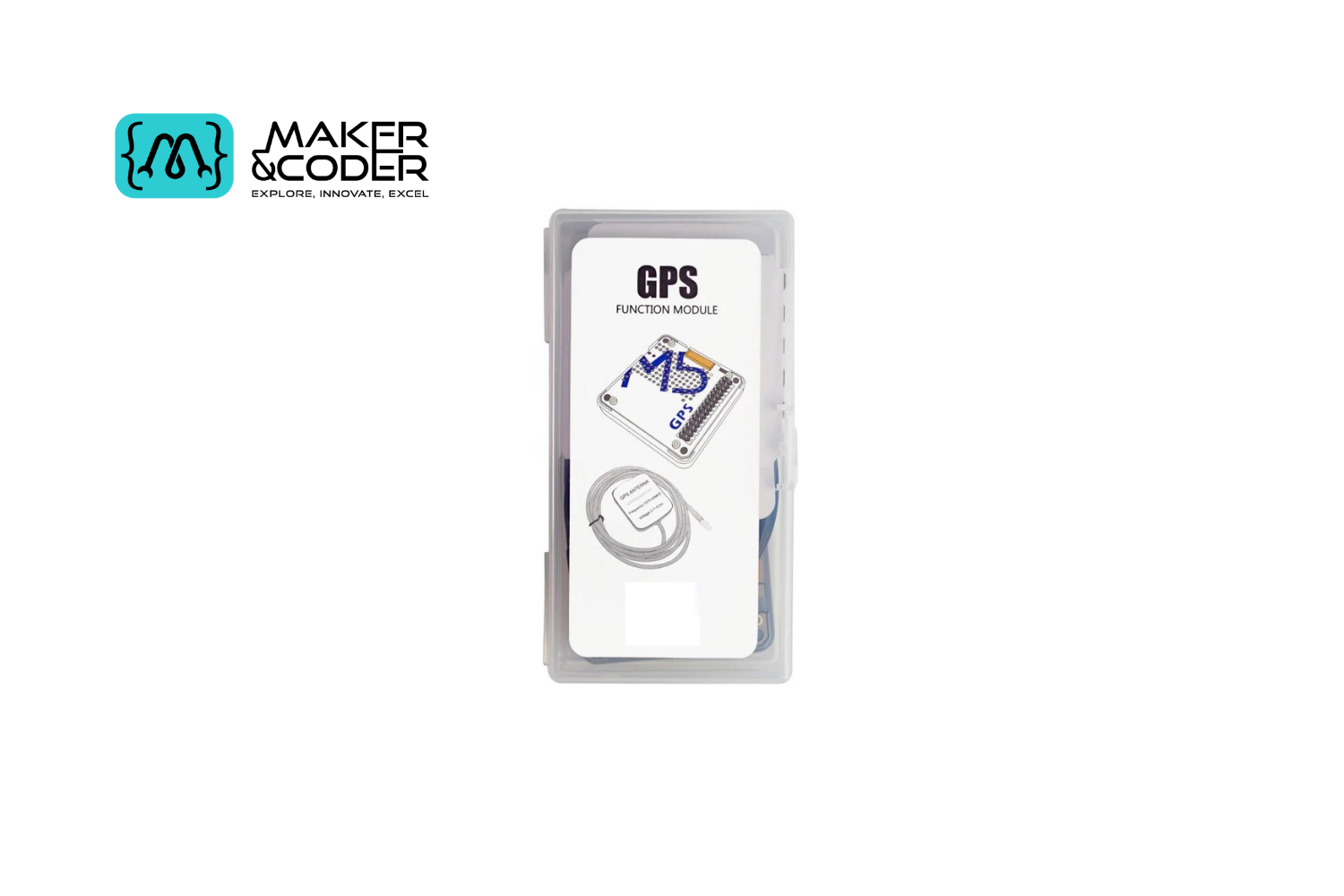

Inside the box, you will find the ublox neo m8n GPS module, an external antenna with an SMA connector mounting parts, and a setup guide to help you get started.
This module works with GPS, GLONASS, BeiDou, Galileo, and SBAS. It has the ability to receive signals from three of these systems at the same time.
In good conditions, it can provide horizontal accuracy of about 2.5 meters. Its sensitivity is −167 dBm, which is useful in places where signals are weak.
A cold start with no prior satellite fix needs 26 seconds. A hot start, which happens after a recent fix takes about 1.5 seconds.
This module can work with NMEA, UBX, and RTCM protocols. This makes it useful in a lot of situations and works well with different firmware tools.
The module can work well in temperatures between −40 °C and +80 °C. It uses little power and can handle a range of environmental challenges.
Yes. The module includes built-in FLASH memory. You can use u-center software on Windows to update the GPS module with antenna and get the newest features.
